Product

The mold shelves-001

The mold shelves-001

Product features:

Mold shelves is one of the shelves, hereinafter referred to as: mold frame, main storing all kinds of mold materials, according to the layer load capacity...

Scope of application:

Die set is mainly used for all kinds of plastic mold, metal mold, die-casting mold, powder metallurgy mold, extrusion mold

15632799296

Product details
Product parameters

The characteristics of description:

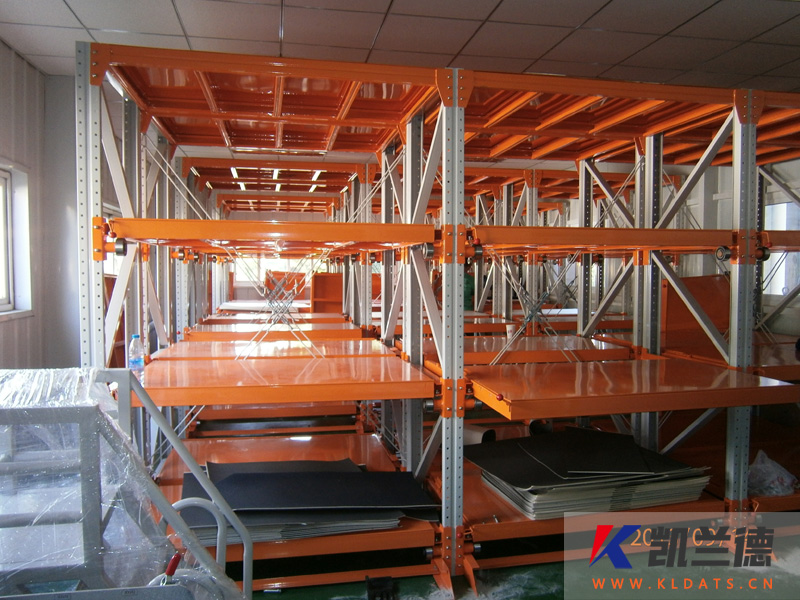

Mold shelves is one of the shelves, hereinafter referred to as: mold frame, main store all kinds of mold, according to the planes carrying capacity requirements into the light die mold shelves and heavy shelves. Die set is mainly used for all kinds of plastic mold, metal mold, die-casting mold, powder metallurgy mold, extrusion mold. The top shelf can be configured mobile hoist car to facilitate mould lifting. Mold shelves, also known as the mold frame or drawer panel, the main store all kinds of mold, top shelf can be configured mobile hoist, to facilitate the mould lifting. Additional insurance device safe and reliable; Sliding bearing are adopted, operation of the light balance with independent mould device of hoisting; Save area, covers an area of product is 1.8 square meters, can deposit a few sets of small and medium mould; Simple structure, parts assembled by a variety of combinations, easy disassembly, transportation and assembly; Draw-out type mould frame bearing 800-1000 kg per each layer; Save a space, each lattice can put more sets of mould, convenient mould maintenance management and looking for; Die set after smoke board carrying easily pumping, interval adjust up and down, collaborative pulley and chain hoist can be easy and fast access to work; Formwork adopting removable type structure, all parts can be any combination of upper and lower interval, easy tear open outfit.


Mold storage system of several major features:

1, portfolio assembly, mainly by the column, guide gibs, drawer, tie rod, pins, etc., USES the bolt connection, stable structure, safe and reliable, rows.

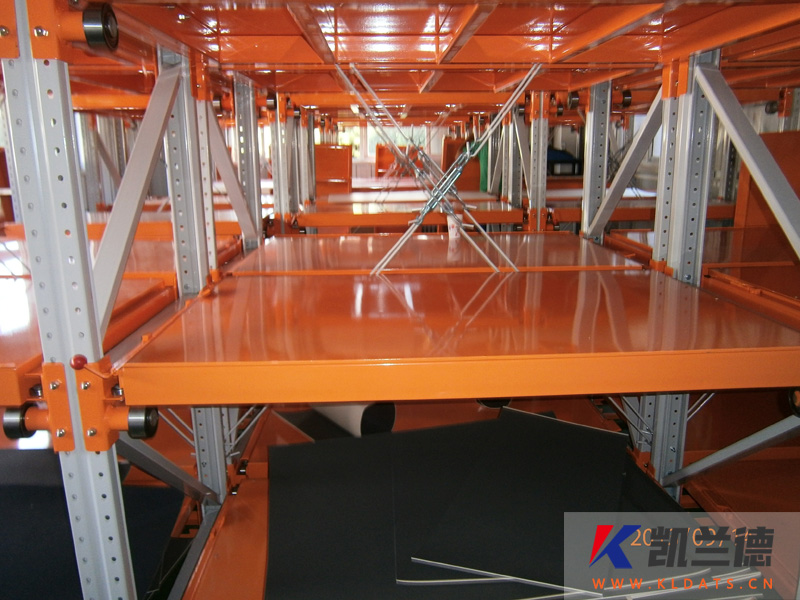

2, drawer plate is mainly composed of slides, drawer plate. The drawer by torque tube plus bending parts of frame and steel plate welded together.

3, mold shelves drawer plate for security reasons, the design of the positioning pin and the limit pin, to ensure that the drawer panel ensure safety during extraction.

4, light mold shelves loaded from 200 to 800 kg/layer. Heavy drawer racking layer in: 800 to 1500 kg/layer.

5, mold shelves covers an area of less, big layer, detailed classification and simple operation.

6, mold shelves can also drawer panel on pallet rack beam, to save cost, more solid structure.
